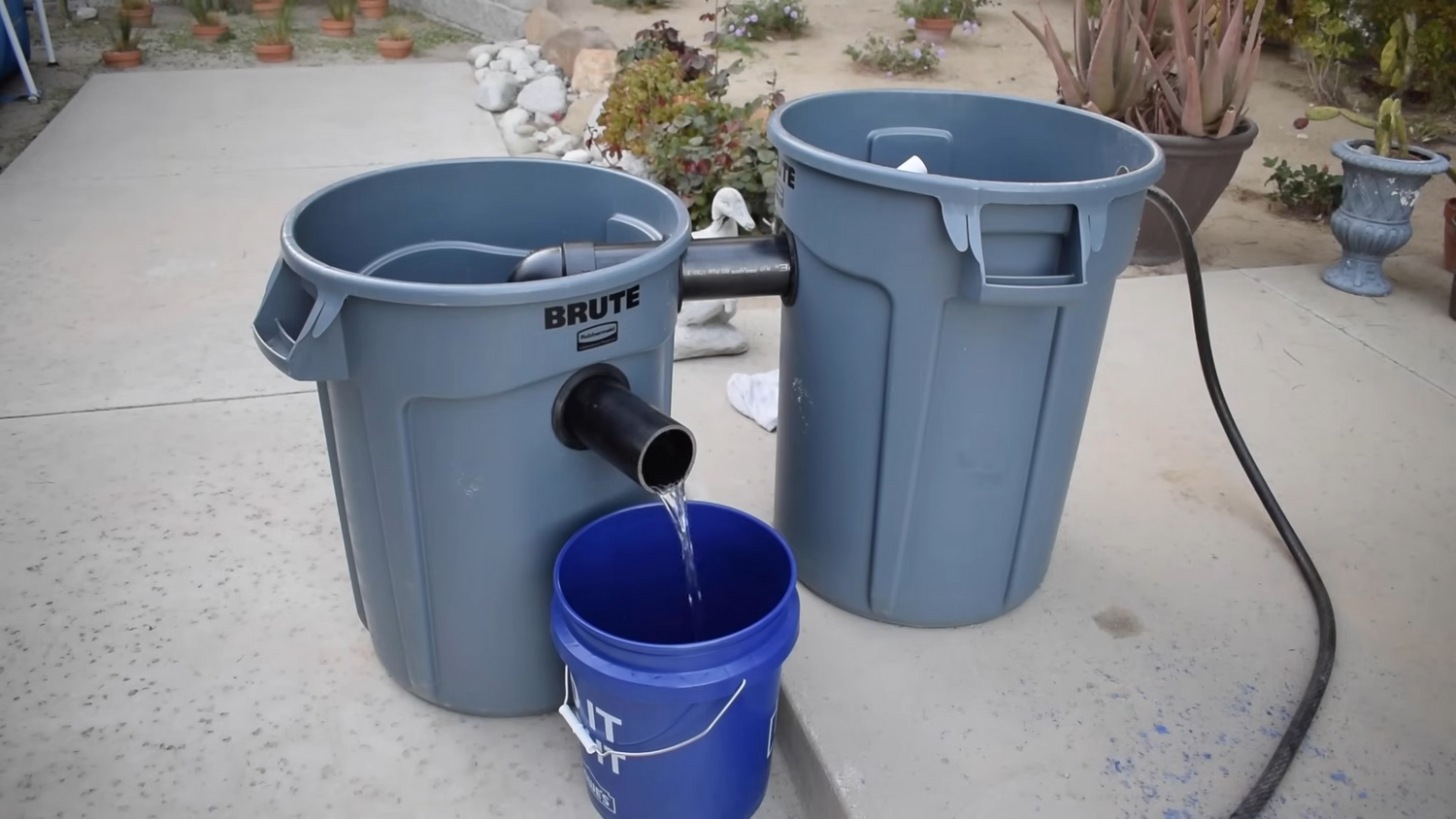

Low-cost DIY double-barrel pond filter: Hand-in-hand guide to create a

I. Project background: Why choose a double-barrel filtration system?

For courtyard koi ponds or ecological ponds, water quality maintenance is the core problem. Traditional commercial filters are expensive (usually over $1500), while the DIY double-barrel filtration system only costs $300-$400, which can achieve the dual effects of mechanical filtration + biological filtration, suitable for water bodies below 2000L, simple maintenance and significant results.

Core advantages

• ✅ Cost saving: The cost is only 1/5 of commercial equipment
• ✅ High-efficiency filtration: Water transparency can reach 80cm+
• ✅ Flexible modification: The filter material configuration can be adjusted according to the size of the pond

2. Complete material list: Accurate procurement without pitfalls

The following is a list of materials that has been tested, including core components, tools and filter materials. It is recommended to give priority to HDPE material components with strong weather resistance:

1. Core hardware (two-barrel filtration system)

2. Tool list (beginner-friendly)

• Hole saw set (3 inches + 1 inch, suitable for electric drill)
• 18V brushless electric drill (torque ≥ 30Nm, with speed adjustment function)
• Pipe cutting saw (with guide rail, accuracy ±0.2mm)
• Pipe chamfering tool (3 inches/1 inch adaptable)
• Food-grade silicone lubricant (special for sealing)
• Sandpaper (80 mesh + 240 mesh, grinding the edge of the hole)

III. Step-by-step construction tutorial: 7 key steps explained in detail

Step 1 Trash can hole positioning (accuracy control ±2mm)

1. Mark the hole position - Use a laser level to calibrate the horizontal position of the two barrels to ensure that the installation height difference is ≤5mm (to avoid poor water flow). - Main trash can (water inlet tank): - Overflow hole: 15cm from the bottom of the barrel, mark a 3-inch round hole (for connecting the main pipe of the auxiliary barrel). - Water inlet pipe hole: 5cm to one side of the center of the barrel cover, mark a 1-inch round hole (connecting the pond water pump). - Auxiliary trash can (biological tank): - Connection hole: 10cm from the bottom of the barrel, mark a 3-inch round hole (to connect the overflow pipe of the main barrel). - Drain hole: 5cm from the center of the barrel cover, mark a 1-inch round hole (water flows back to the pond after filtration).

2. Drilling operation - Install the corresponding hole saw with the electric drill, cut vertically at low speed (150-200RPM) to avoid shaking and causing the hole diameter to become larger. - After drilling the hole, use 80-grit sandpaper to grind the burrs, and then polish with 240-grit sandpaper (roughness Ra≤12.5μm to prevent scratching the seal).

Step 2 UNISEAL seal installation (leak-proof core process)

1. Seal pretreatment Tear off the UNISEAL seal protective film, and evenly apply a layer of food-grade silicone lubricant (thickness about 0.5mm) on the inside to reduce insertion resistance.

2. Embedded in trash can Align the seal with the hole and press evenly with your palm until the rubber lip is completely embedded in the wall of the bucket (the edge is flush with the wall of the bucket), ensuring that there is no skewing or lifting.

3. Stability check Gently pull the edge of the seal with your fingers, and there should be no looseness; if there is slight displacement, you can add a rubber gasket on the outside to enhance the sealing.

Step 3 Cutting and connecting the main pipe (3-inch ABS pipe)

1. Pipeline size calculation - Horizontal connection section: the center distance between the two barrels + 10cm (for example: if the distance between the two barrels is 30cm, cut 40cm and reserve 5cm insertion depth). - Vertical section of the biological bin: extend 25cm downward from the connection hole in the barrel (5cm from the bottom of the bin to avoid inhaling sediment).

2. Precision cutting Use a pipe cutting saw to cut the pipe vertically, ensuring that the cut is perpendicular to the pipe wall (error ≤0.5mm) to avoid tilting and causing seal failure.

3. Bevel processing Use a chamferer to process a 30° bevel at the end of the pipe to increase the contact area with the seal, and use sandpaper to polish it smooth until there are no burrs.

4. Insert seal Apply silicone lubricant to the end of the pipe, align it with the center hole of the seal, and push it in at a constant speed until it is completely inserted (embedded depth ≥2.5cm), ensuring that the pipes on both sides are horizontally aligned.

Step 4 Install the water inlet and drain pipes (1-inch PVC pipe)

1. Installation of water inlet pipe (pond pump→main barrel) - Connect the pipe from the water pump outlet to the water inlet pipe hole at the top of the main barrel, and connect a 90° elbow at the end. The lower edge of the elbow should be 5cm away from the liquid surface in the main barrel (to prevent water flow from impacting the water surface and generating foam). - Use PVC glue to evenly apply the interface at the connection, let it stand for 1 hour to solidify, and ensure no leakage.

2. Installation of drain pipe (biological chamber→pond) - Connect the pipe from the drain pipe hole at the top of the biological chamber to the pond, and the outlet should be 10cm above the water surface (to form a siphon destruction point to prevent water backflow after shutdown). - A ball valve (specification 1 inch) can be installed in the middle of the drain pipe to facilitate water flow shutdown during later maintenance (such as when replacing filter materials).

Step 5 Filter material layering (key filter structure)

Water inlet (first bucket: mechanical filter layer)

1. Bottom layer coarse filtration Cut a stainless steel mesh (40 mesh, pore size 0.425mm) to cover the bottom of the bucket, and fix the edge to the raised part of the bucket wall with a 12-inch nylon tie (fix once every 20cm) to prevent water flow impact and displacement.
2. Middle layer fine filtration Cut 30PPI biochemical cotton to the size of the bucket inner diameter (error ≤1cm), fold 2-3 layers (total thickness 5-8cm), and lay it flat on the stainless steel mesh, leaving a 2cm gap on the edge to avoid clogging the overflow hole.
3. Space reservation After filling, ensure that there is 10cm space between the top and the bucket cover to prevent the filter material from clogging the water inlet pipe or affecting water overflow.

Biological chamber (second barrel: biological filter layer)

1. Bottom support Lay 5cm thick large-grain lava rocks (particle size 2-3cm) to form a water flow buffer to prevent high-speed water flow from impacting the sediment at the bottom of the barrel.
2. Core filter material filling Fill 1-2cm particle size lava rocks in 3 times. After each filling, shake the barrel body gently to evenly distribute the filter material. Finally, fill it to 3/4 of the barrel height (about 40L, porosity maintained above 40%).
3. Top layer protection Cover with 1 layer of 20PPI biochemical cotton (the edge is fixed to the barrel mouth buckle with a cable tie) to prevent small particle filter material from overflowing with the water flow and evenly distribute the water flow.

Step 6 System water test and seal inspection

1. Water pump installation Use a 1500-2000GPH submersible pump (flow rate = water volume × 5 times/hour), the pump body needs to be equipped with a 300-mesh pre-filter (intercept particles larger than 5mm), and install it at a distance of more than 15cm from the bottom of the pool to prevent mud suction.
2. Water filling test Fill the pond with water to the normal water level, start the water pump, and observe whether the water level in the main barrel is stable at 2cm below the overflow port. The water flow should overflow to the biological bin evenly without splashing or retention.
3. Leak point inspection Wipe all seal edges, pipe interfaces and glue joints with dry paper towels. If there is no wet mark within 5 minutes, it is qualified; if a leak is found, stop the machine immediately to drain, readjust the pipe insertion depth and reapply lubricant.

Step 7 Water quality adjustment and bacterial flora cultivation

1. Inoculation of nitrifying bacteria During the first operation, add liquid nitrifying bacteria (including Nitrosomonas and Nitrobacter composite bacteria) at 50mL/1000L water body and pour directly on the surface of the bio-bin filter material.
2. Aeration start In the first 2 weeks, turn on the air pump for 4 hours a day (the air stone is placed at the bottom of the bio-bin, and the air output is 2L/min), maintain the dissolved oxygen DO≥5mg/L, and accelerate the attachment and reproduction of the bacterial flora.
3. Initial management - Do not feed for the first 3 days to allow the bacterial flora to be initially established; start feeding a small amount (50% of the normal amount) on the 4th day to observe the changes in water quality. - Use test agents to test ammonia nitrogen (target ≤0.1mg/L) and nitrite (≤0.05mg/L) every week, and maintain pH at 7.2-8.2.

Fourth, Maintenance Guide: 3-minute quick maintenance

V. Solutions to common problems

Q1: What should I do if there is a leak at the pipe connection?

Cause analysis: - Insufficient embedding depth of seal (<2.5cm) - Rough or unchamfered end of pipe - Uneven application of silicone lubricant Solution steps: 1. Turn off the water pump and drain the water in the two buckets; 2. Take out the pipe, polish the end with 80-grit sandpaper until it is smooth, and process a 30° bevel; 3. Reapply silicone lubricant to ensure that the depth of the pipe inserted into the seal is ≥2.5cm (a mark line can be made on the pipe); 4. After standing for 30 minutes, retest the water to check for leakage.

Q2: Is the water still turbid after filtration?

Possible causes: - Insufficient mechanical filtration (coarse filter mesh size Too low) - Biochemical cotton is clogged or the filter material is filled too densely - The initial bacterial community is not established, and the ammonia nitrogen conversion efficiency is low Solution: 1. Add a 100-mesh pre-filter bag in front of the water pump (intercept particles above 50μm); 2. Check the biochemical cotton, and replace it with a new cotton if it is seriously clogged (it is recommended to keep 2 sets for rotation); 3. Stop feeding for 1 day, increase the aeration time to 6 hours, and add nitrifying bacteria (50% of the first dosage).

Q3: Is there a fishy smell in the biological warehouse?

Root cause: Lack of oxygen in the filter material leads to anaerobic reaction, producing gases such as hydrogen sulfide Solution: 1. Install an air stone at the bottom of the biological bin (the gas output is increased to 3L/min) to ensure that there are continuous bubbles rising in the gaps between the filter materials; 2. Reduce the amount of feeding at a time and change to "small amounts and multiple times" feeding (2-3 times a day, preferably finished within 5 minutes); 3. If the odor persists, remove some of the filter material for cleaning (retain 50% of the original filter material to maintain the bacterial flora), refill and supplement the bacteria.

Sixth, upgrade and optimization plan (select as needed)

1. Bottom sewage system (recommended)

Drill a 1.5-inch hole in the center of the bottom of the water inlet bin, install UNISEAL seals and ball valves, and open it for 30 seconds every month to drain the sediment (drill holes in the bottom of the barrel in advance and seal it well).

2. UV sterilization (for algae)

Connect a 36W UV lamp in series at the end of the drain pipe (need to match a 1-inch pipe interface) and run it for 2 hours a day (it is recommended to turn it on in the evening) to kill free algae and pathogens in the water and prevent algal blooms.

3. Smart monitoring system (for geeks)

Install a float switch (water shortage alarm) + flow sensor (monitor real-time flow), and use Arduino or Raspberry Pi to remotely monitor the mobile phone APP, view the filtration status in real time, and set the automatic cleaning cycle.

Safety Precautions

• When operating an electric drill or cutting saw, you must wear goggles and gloves to keep the working area dry and non-slip
• The water pump must be connected to a GFCI leakage protection socket (trip current ≤6mA) to prevent the risk of electric shock
• When the temperature is below 0℃ in winter, drain the water in the pipe and add food-grade antifreeze (propylene glycol) to prevent freezing and cracking

With this DIY system, you can achieve the same water quality maintenance effect at less than 1/5 of the cost of commercial equipment. Take action now to keep your pond clear and create a healthy growth environment for fish!
